| Model Number: | Assembly-Type |
| MOQ: | 1 set |
| Price: | Contact Us |
| Payment Terms: | T/T,Alipay |
| Supply Ability: | Over 3,000 sets/month |

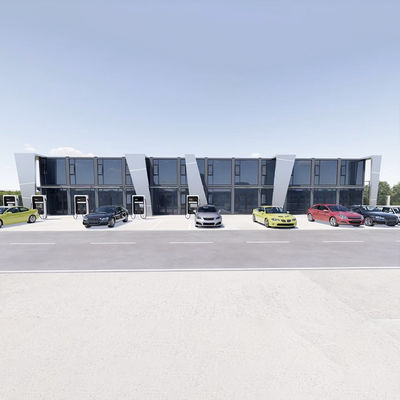

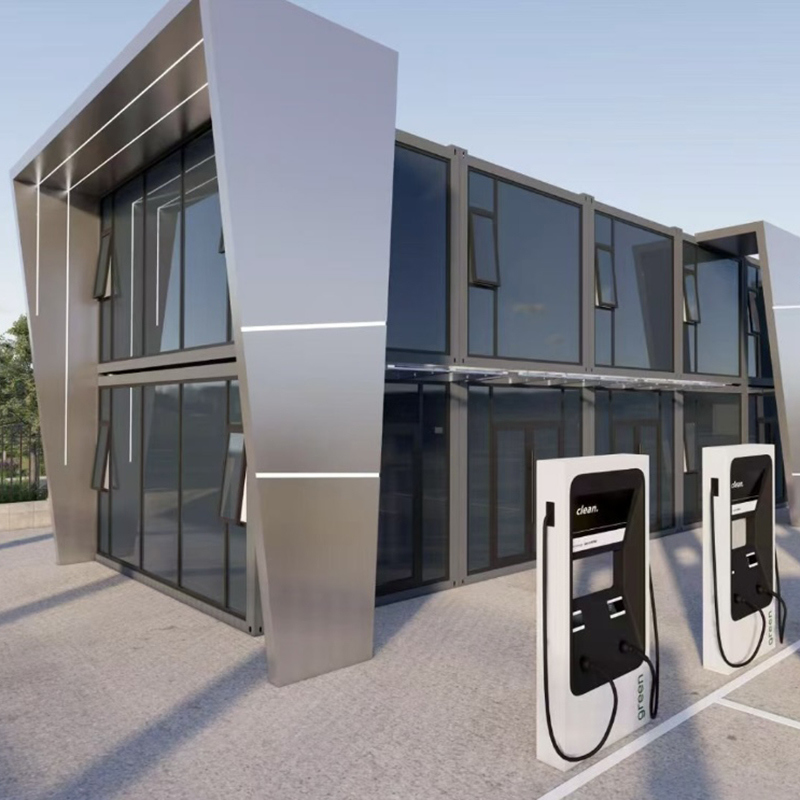

Detachable Prefabricated Expandable Bedroom Living Prefab Container House
1. Rapid construction to shorten the construction period
The core advantage of prefabricated houses lies in their efficient construction speed. Due to the fact that most components are prefabricated in the factory and only need to be assembled on site, the construction period is usually shortened by more than 50% compared to traditional buildings.
2. Controllable cost
Prefabricated houses achieve material and labor cost optimization through factory production. Standardized production reduces material waste, while modular design reduces the complexity of on-site construction.
3. Environmental protection and energy conservation
Prefabricated houses pay attention to resource conservation and environmental protection in the production and construction process. Factory production reduces dust, noise, and waste pollution during on-site construction. In addition, many prefabricated houses use light steel, wood, or other recyclable materials, which conform to the concept of green building.
4. Flexibility and Mobility
The modular design of prefabricated houses gives them a high degree of flexibility. Users can customize the layout of the house according to their needs, and even dismantle and reassemble it to other locations in the future. Container houses and light steel structure houses are particularly suitable for scenarios that require frequent relocation, such as tourist homestays, construction site dormitories, etc.
|
Structure |
|
|
Corner post |
Galvanized cold-rolled steel, Material Q2358, t=3.0mm |
|
Roof secondary beam |
Galvanized cold-formed C-shaped steel, Material Q235B, t=1.5mm |
|
Ground main beam |
Galvanized cold-rolled steel, Material Q2358, t=3.0mm |
|
Ground secondary beam |
Galvanized cold-formed C-shaped steel, Material Q235B, t=2.0mm |
|
Wall
|
75mm thick color steel glass wool sandwich panel |
|
Roof |
Roof panel |
0.45mm thick galvanized color steel plate |
|
Thermal insulation |
100t thick glass fiber cotton blanket |
|
|
Ceiling panel |
0.5m thick galvanized color steel plate |
|
|
House floor |
Decorative surface layer |
2.0mm thick PVC floor adhesive, light gray |
|
Thermal insulation cotton (optional) |
100mn thick glass wool felt |
|
|
Wall |
Thickness |
75mm thick color steel glass wool sandwich panel |
|
Insulation |
75m thin glass wool |
|
|
Door |
Specification (mm) |
850*2030(W*H) |
|
Material |
Steel door |
|
|
Window |
Specification (mm) |
1150 * 1100(W*H) |
|
Material of pivot frame |
Plastic steel, 60 series |
|
|
Glass |
5mm insulated glass |
Q1: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory. You are welcome to visit us anytime for inspection. Our quality control process and sales team will showcase our professionalism to you. In addition, after visiting us, you will receive the best and most competitive prices.
