| Model Number: | Expanded-Type |
| MOQ: | 1 set |
| Price: | Contact Us |
| Payment Terms: | T/T,Alipay |
| Supply Ability: | Over 3,000 sets/month |

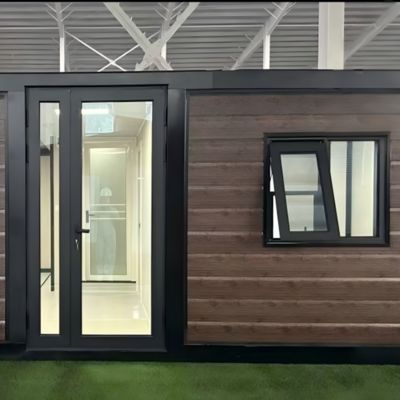

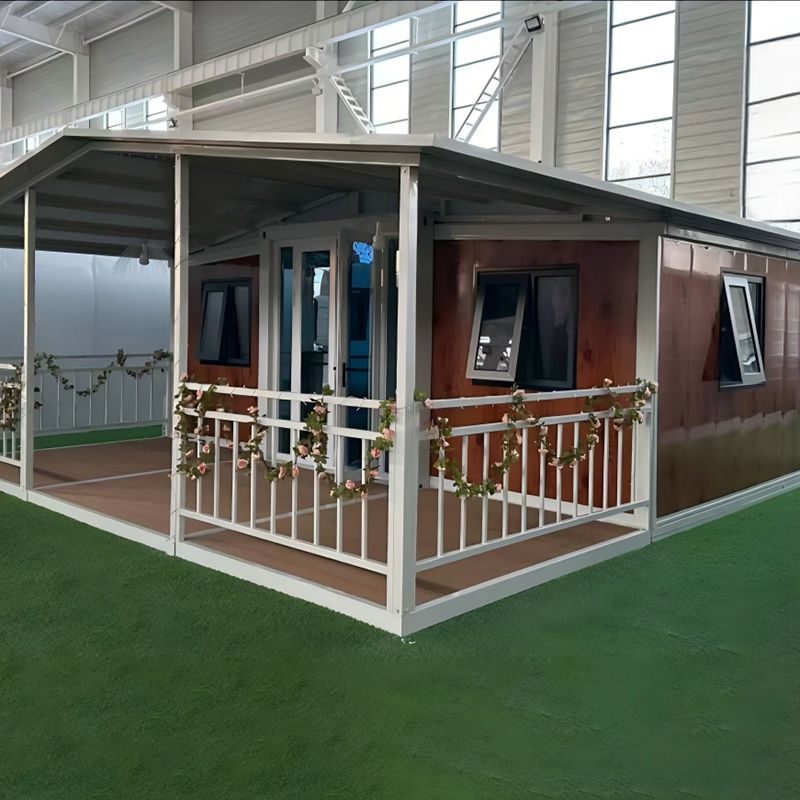

Luxury 20Ft 40Ft Waterproof Expandable Container Mobile Home Prefabricated Kitchen Casa Contenedor
1, Space flexibility and scalability
The biggest feature of an extended house is its expandable structure. This design allows the house to remain compact when not in use, greatly saving space. When more space is needed, the wings can be extended to quickly increase the usable area of the house, meeting the needs of various scenarios such as residential, office, and commercial.
2, Efficient utilization of resources
In the design and construction process of expansion houses, emphasis is placed on the efficient utilization of resources. Through reasonable spatial layout and structural design, every inch of space can be fully utilized, avoiding unnecessary waste.
3, Easy installation and fast deployment
The installation and deployment process of the expansion room is relatively simple and fast. Built with prefabricated modules, assembly and debugging work can be completed in a short period of time. This efficient installation method not only shortens the construction period.
4, Durable and Safe
Expansion houses are usually made of high-strength materials, which have good compressive and seismic performance. This sturdy and durable feature enables the house to withstand various environmental conditions and pressures, ensuring the safety of occupants.
5, Aesthetics and Personalization
Expansion houses focus on aesthetics and personalization in their exterior design. By combining different colors, materials, and decorations, a unique and fashionable appearance can be created.
|
Structure |
|
|
Corner post |
Galvanized cold-rolled steel, Material Q2358, t=3.0mm |
|
Roof main beam |
Galvanized cold-rolled steel, Material Q2358, t=2.5mm |
|
Roof secondary beam |
Galvanized cold-formed C-shaped steel, Material Q235B, t=1.5mm |
|
Ground secondary beam |
Galvanized cold-formed C-shaped steel, Material Q235B, t=2.0mm |
|
Industrial water-based baking paint |
Primer+topcoat ≥ 80 μ m |
|
Wall
|
75mm thick color steel glass wool sandwich panel |
|
Roof |
Roof panel |
0.45mm thick galvanized color steel plate |
|
Thermal insulation |
100t thick glass fiber cotton blanket |
|
|
Ceiling panel |
0.5m thick galvanized color steel plate |
|
|
House floor |
Decorative surface layer |
2.0mm thick PVC floor adhesive, light gray |
|
substrate |
18m thick cement fiberboard |
|
|
Thermal insulation cotton (optional) |
100mn thick glass wool felt |
|
|
Wall |
Thickness |
75mm thick color steel glass wool sandwich panel |
|
Insulation |
75m thin glass wool |
|
|
Window |
Specification (mm) |
1150 * 1100(W*H) |
|
Material of pivot frame |
Plastic steel, 60 series |
|
|
Glass |
5mm insulated glass |
Q1: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory. You are welcome to visit us anytime for inspection. Our quality control process and sales team will showcase our professionalism to you. In addition, after visiting us, you will receive the best and most competitive prices.
