| Model Number: | M-Type Foldable Homes |
| MOQ: | 1 set |
| Price: | Contact Us |
| Payment Terms: | T/T,Alipay |
| Supply Ability: | Over 3,000 sets/month |
The industrial and agricultural environments provide application space for folding activity rooms. Local suppliers offer multiple options for users to view samples in person. Factors to consider include land availability and usage matching, without the need for complex approvals, but in compliance with general building codes.
Despite its convenience, folding activity rooms also have limitations. The insulation and sound insulation performance may not be as good as fixed buildings, making it unsuitable for professional living. In the harsh winter of Tieling, additional insulation measures are required. The space is relatively compact, and large-scale events may require multiple unit combinations.
1) All steel fabric parts and the size of prefab house can be made according to clients’ requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
3) The material of prefab house is light and easily to installation. one 27-35 square meter housefour workers 10min finished installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
|

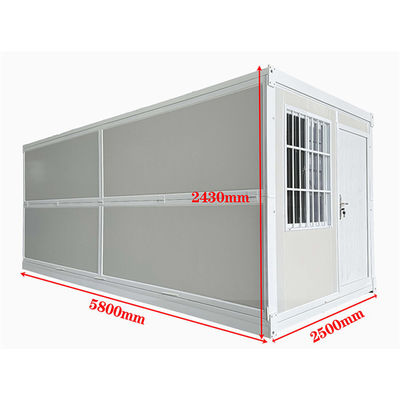

Product Spec |
Length |
6055 mm |
|
Width |
2435/2990 mm |
|
|
Height |
2896 mm |
|
|
Roof form |
Flat roof with organized internal drainage |
|
|
Design parameters (standard) |
Structural design service life |
15 years |
|
Ground live load |
2. 0KN/'mr |
|
|
Roof live load |
1. 0KN/'mr |
|
|
Wind load |
0. 6KN/'mr |
|
Structure |
|
|
Corner post |
Galvanized cold-rolled steel, Material Q2358, t=3.0mm |
|
Roof main beam |
Galvanized cold-rolled steel, Material Q2358, t=2.5mm |
|
Ground secondary beam |
Galvanized cold-formed C-shaped steel, Material Q235B, t=2.0mm |
|
Wall
|
75mm thick color steel glass wool sandwich panel |
Q1: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory. You are welcome to visit us anytime for inspection. Our quality control process and sales team will showcase our professionalism to you. In addition, after visiting us, you will receive the best and most competitive prices.
